TC7SH34FE is a non-inverting buffer produced by Toshiba company, which has the characteristics of super-high speed, low power consumption and high noise immunity
The TC7SH34FE is a CMOS non‑invert buffer offering high‑speed operation with a typical propagation delay of 3.8 ns at 5 V. It provides low power dissipation and wide operating voltage range, making it suitable for general electronics applications such as computers, office equipment and industrial robotics.

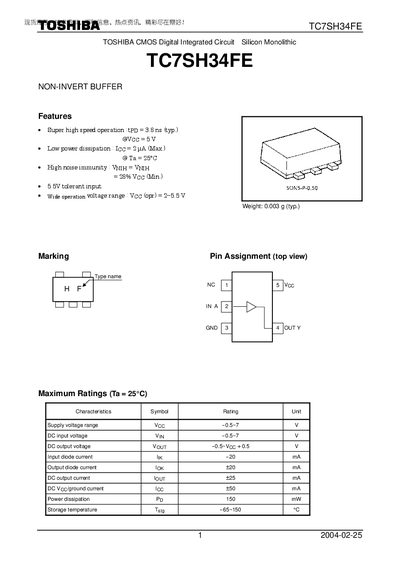

The datasheet lists maximum ratings, recommended operating conditions, AC characteristics, package dimensions (SON5‑P‑0.50) and usage restrictions. It also includes electrical characteristics like supply voltage range, input/output voltage levels and leakage currents.
| Typical propagation delay | 3.8 ns @ Vcc=5V |
|---|---|
| Supply voltage range | 2 V to 5.5 V |
| Low power dissipation (Icc max) | 2 A |
| Package type | SON5‑P‑0.50 |
| Weight | 0.003 g (typ.) |
The typical propagation delay is 3.8 ns when powered at 5 V.
The recommended supply voltage range is 2 V to 5.5 V.
It uses a SON5‑P‑0.50 surface‑mount package.
