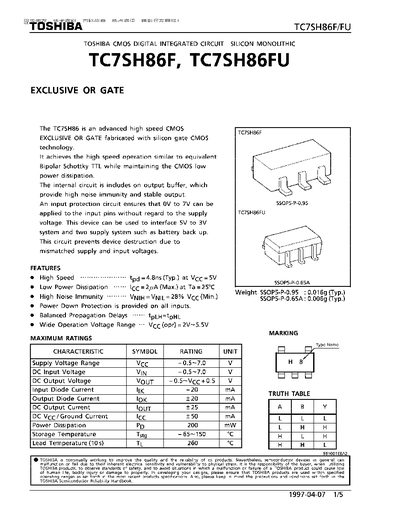

The TC7SH86F/TC7SH86FU is a high‑speed CMOS exclusive‑OR gate that offers low power consumption, high noise immunity, and built‑in input protection for voltages up to 7 V. It is suitable for interfacing 5 V to 3 V systems and for use in dual‑supply applications.
The device is supplied in SSOP5‑P‑0.95 and SSOP5‑P‑0.65A packages, with typical weight of 0.016 g (SSOP5‑P‑0.95) or 0.006 g (SSOP5‑P‑0.65A). Electrical specifications include a typical propagation delay of 4.8 ns, a supply voltage range of 2.0 V to 5.5 V, and a maximum power dissipation of 200 mW.
| Typical propagation delay | 4.8 ns (Typ.) at Vcc = 5 V |
|---|---|
| Power dissipation | 200 mW |
| Supply voltage range | 2.0 V ~ 5.5 V |
| Input voltage range | 0 V ~ 5.5 V |
| Operating temperature | -40 °C ~ 85 °C |
| Package type | SSOP5‑P‑0.95 and SSOP5‑P‑0.65A |
| Typical weight (SSOP5‑P‑0.95) | 0.016 g |
The typical propagation delay is 4.8 ns at a supply voltage of 5 V.
It operates from 2.0 V to 5.5 V.
The maximum power dissipation is 200 mW.
The IC is offered in SSOP5‑P‑0.95 and SSOP5‑P‑0.65A packages.
