Toshiba TC7SH34FS Datasheet

TC7SH34FS is a CMOS digital integrated circuit produced by Toshiba. It features high speed, low power consumption, high noise immunity and 5.5V tolerant input. Its maximum operating voltage range is 2~5.5 V and its operating temperature range is -40~85 °C.

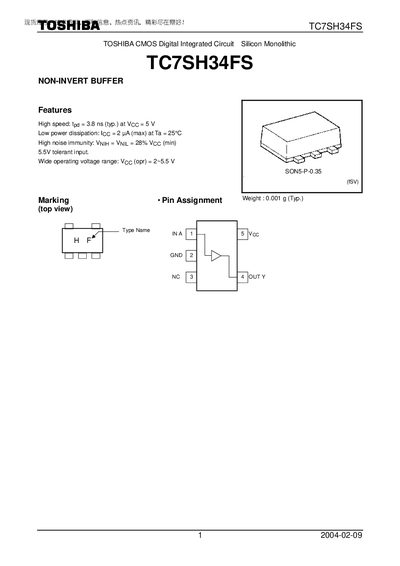

Toshiba TC7SH34FS Datasheet - cover page
Brand
Toshiba
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
6
File format
PDF
File size
137 KB
Published
01 April, 2012
Updated
30 September, 2023
MD5 checksum
885821D5DF4E30B0BC96EF1E6E82335B

About this manual

The TC7SH34FS is a CMOS non‑inverting buffer with high speed (tpd = 3.8 ns typ.) and ultra‑low power dissipation (Icc = 2 pA max). It operates over a wide supply range (2.0 V to 5.5 V) and offers 5.5 V tolerant inputs.

The document lists maximum ratings, detailed DC and AC electrical characteristics, package dimensions (SON5‑P‑0.35, weight 0.001 g), and usage restrictions for safety and reliability in various electronic applications.

What's inside

  • Features
  • Maximum Ratings
  • Electrical Characteristics
  • AC Characteristics
  • Package Dimensions
  • Restrictions on Product Use

Specifications

Propagation delay (typ.)3.8 ns at VCC = 5 V
Supply current (Icc)2 pA max at 25°C
Recommended supply voltage2.0 V – 5.5 V
Maximum supply voltage rating-0.5 V to 7.0 V
Power dissipation50 mW
Storage temperature range-65°C to 150°C
Package weight0.001 g (typ.)

Frequently asked questions

What is the typical propagation delay of the TC7SH34FS?

The typical propagation delay is 3.8 ns at a 5 V supply.

What supply voltage range is the device rated for?

The device is rated for a supply voltage from –0.5 V to 7.0 V.

What is the recommended operating supply voltage range?

The recommended operating supply voltage is 2.0 V to 5.5 V.

How much power can the device dissipate safely?

The device can safely dissipate up to 50 mW.
