TC7SH86FS is a NAND gate produced by Toshiba. It features high speed, low power consumption, high noise immunity, 5.5V tolerant input and wide operating voltage range.
The TC7SH86FS is a CMOS digital integrated circuit implementing an exclusive‑OR gate. It offers high speed with a typical propagation delay of 4.8 ns at a 5 V supply and ultra‑low power dissipation of 2 pA.

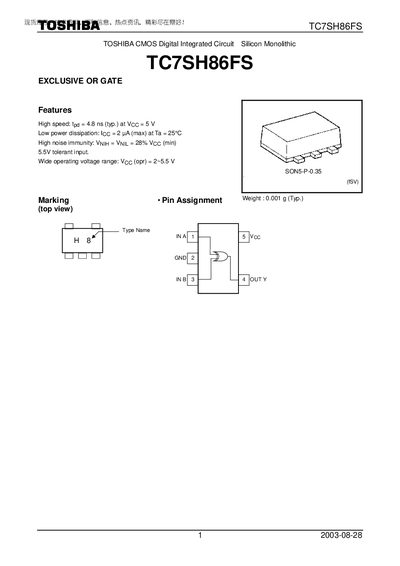

The document lists maximum ratings, recommended operating conditions, detailed DC and AC electrical characteristics, package dimensions (SON5‑P‑0.35) and weight, and usage restrictions for safety‑critical applications.
| Typical propagation delay (tpd) | 4.8 ns |
|---|---|
| Supply voltage range (Voc) | -0.5 V to 7.0 V |
| Low‑power supply current (Icc) | 2 pA max |
| Power dissipation (Pp) | 50 mW |
| Operating temperature (Topr) | -40 °C to 85 °C |
| Storage temperature (Tstg) | -65 °C to 150 °C |
| Package weight | 0.001 g typ. |
| Package dimensions (SON5‑P‑0.35) | ≈1.0 × 0.4 × 0.5 mm |
The typical propagation delay is 4.8 ns at a 5 V supply.
The recommended supply voltage range is 2.0 V to 5.5 V.
The maximum power dissipation is 50 mW.
The device can be stored from –65 °C up to 150 °C.
