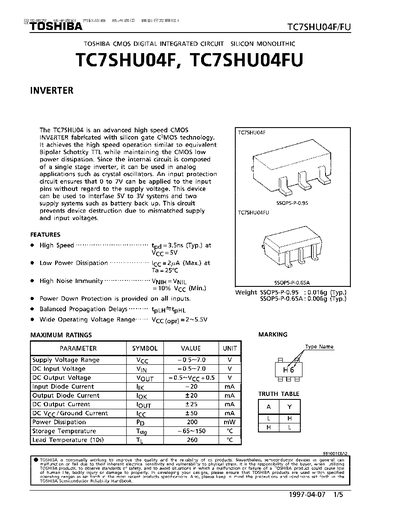

The TC7SHU04F/FU is a high‑speed CMOS inverter fabricated with silicon‑gate C2MOS technology. It offers low power dissipation and can be used in analog applications such as crystal oscillators, with input protection for 0 to 7 V.
The datasheet lists maximum ratings, recommended operating conditions, DC and AC electrical characteristics, and package dimensions for the SSOP5‑P‑0.95 and SSOP5‑P‑0.65 variants.
| Supply Voltage Range | -0.5 ~ 7.0 V |
|---|---|
| Input Voltage (VIN) | -0.5 ~ 7.0 V |
| Output Voltage (VOUT) | -0.5 ~ VCC + 0.5 V |
| Input Diode Current | -20 mA |
| Output Diode Current | +20 mA |
| DC Output Current (Iout) | 425 mA |
| Power Dissipation (PD) | 200 mW |
| Storage Temperature | -65 ~ 150 °C |
| Lead Temperature (10 s) | 260 °C |
| Recommended Supply Voltage (VCC) | 2.0 ~ 5.5 V |
| Recommended Input Voltage (VIN) | 0 ~ 5.5 V |
| Recommended Output Voltage (VOUT) | 0 ~ VCC |
| Operating Temperature | -40 ~ 85 °C |
The device operates from –0.5 V to 7.0 V supply voltage.
The SSOP5‑P‑0.95 package weighs about 0.016 g (typical).
The maximum DC output current is 425 mA.
Recommended supply voltage is 2.0 V to 5.5 V, with input and output voltages from 0 V to 5.5 V.
