STP62NS04Z is a N-channel CLAMPED MOSFET produced by Lingtong Technology. It has the characteristics of low RDS(on), 100% avalanche tested and 175°C maximum junction temperature, which is suitable for harsh environments such as automotive electronics.
The STP62NS04Z is a fully clamped N‑channel MOSFET featuring a 12.5 mΩ typical on‑resistance and a continuous drain current of 62 A at 25 °C. It is designed for harsh environments such as automotive applications and power tools, offering high avalanche robustness and low gate charge.

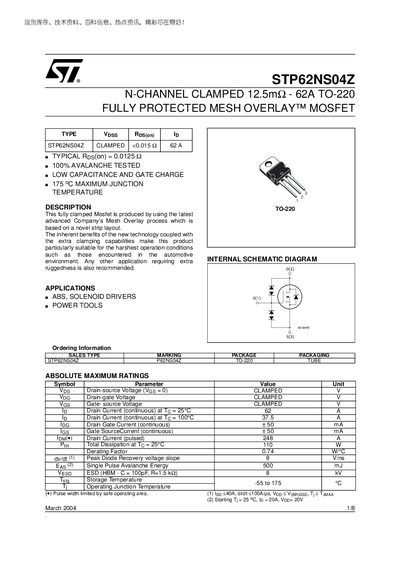

The datasheet provides absolute maximum ratings, thermal characteristics, electrical parameters, switching times, and mechanical dimensions for the TO‑220 package, along with test circuit diagrams and typical performance curves.
| Continuous Drain Current (25 °C) | 62 A |
|---|---|
| Typical On‑Resistance (Rds(on)) | 0.0125 Ω |
| Maximum Drain‑Source Voltage | 33 V |
| Maximum Power Dissipation (25 °C) | 110 W |
| Maximum Junction Temperature | 175 °C |
| Thermal Resistance Junction‑to‑Case | 1.36 °C/W |
| Input Capacitance (Ciss) | 1330 pF |
The device can handle a continuous drain current of 62 A at 25 °C.
The maximum junction temperature is rated at 175 °C.
Typical on‑resistance (Rds(on)) is 0.0125 Ω.
