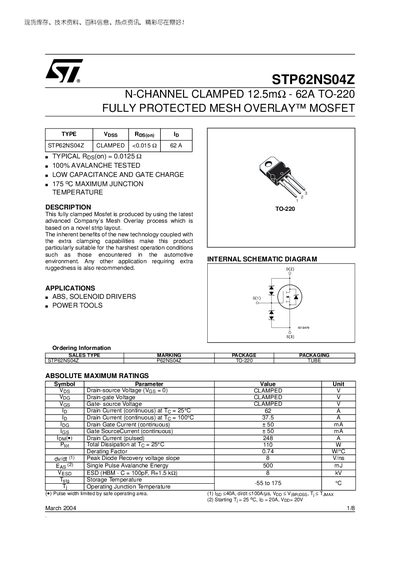

This document is the datasheet of STP62NS04Z N-channel clamped 12.5mΩ - 62A - TO-220 Fully protected MESH OVERLAY™ Power MOSFET
The STP62NS04Z is a fully clamped N‑channel MOSFET produced with STMicroelectronics' Mesh Overlay™ process, offering extra ruggedness for automotive and other harsh environments. It supports applications such as ABS, solenoid drivers, and power tools.
The datasheet provides absolute maximum ratings, thermal data, electrical characteristics (including on‑resistance, gate charge, and switching times), mechanical dimensions for the TO‑220 package, and legal disclaimer information.
| Continuous Drain Current (25 °C) | 62 A |
|---|---|
| Continuous Drain Current (100 °C) | 37.5 A |
| Typical On‑Resistance (Rds(on)) | 0.0125 Ω |
| Maximum Drain‑Source Voltage (Vds) | 33 V |
| Maximum Power Dissipation (25 °C) | 110 W |
| Maximum Junction Temperature | 175 °C |
| Thermal Resistance Junction‑Case | 1.36 °C/W |
| Thermal Resistance Junction‑Ambient | 62.5 °C/W |
The device can handle up to 62 A continuous drain current at 25 °C.
The typical on‑resistance is 0.0125 Ω.
The maximum junction temperature is 175 °C.
