STP7NK30Z is a high performance MOSFET device produced by ST company. It has a rated voltage of 300V, a conduction resistance of 0.80 ohms and a maximum current of 5A. The device has extremely high dv/dt capability and 100% avalanche testing, making it ideal for demanding applications.
The STP7NK30Z and STF7NK30Z are 300 V N‑channel MOSFETs offered in TO‑220 and TO‑220FP packages. The SuperMESH™ series provides low on‑resistance, high dv/dt capability and built‑in gate‑source Zener protection.

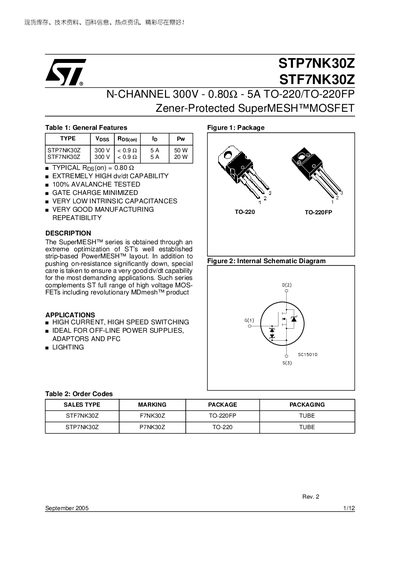

The document lists absolute maximum ratings, thermal characteristics, avalanche parameters and detailed electrical specifications, along with safe‑operating‑area graphs, test circuit diagrams and ECOPACK® environmental packaging information.
| Drain‑source voltage (VDS) | 300 V |
|---|---|
| Typical on‑resistance (RDS(on)) | 0.80 Ω |
| Maximum power dissipation (PD) | 50 W (TO‑220) / 20 W (TO‑220FP) |
| Avalanche current (IAval) | 5 A |
The devices are rated for a maximum drain‑source voltage of 300 V.
Typical on‑resistance is 0.80 Ω at a gate voltage of 10 V.
They are offered in standard TO‑220 and TO‑220FP (lead‑free ECOPACK) packages.
