stp7nc80z is a n-channel 800v - 1.3Ω - 6.5a to-220/fp/d2pak/i2pak zener-protected powermesh™iii mosfet from dinghao brand, with very low gate input resistance and minimized gate charge.

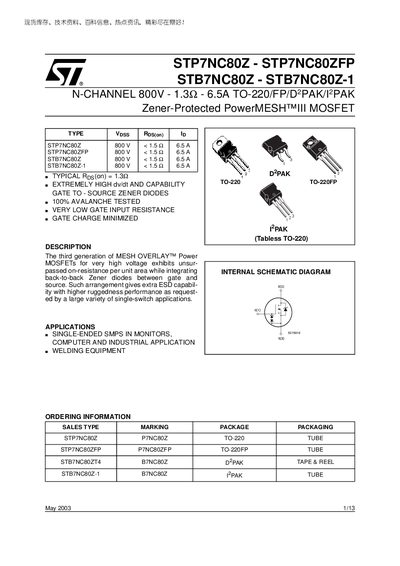

This datasheet provides the electrical, thermal and mechanical specifications for the STP7NC80Z, STP7NC80ZFP, STB7NC80Z and STB7NC80Z‑1 power MOSFETs. The devices feature a 800 V drain‑source rating, integrated gate‑source Zener diodes for ESD protection, and low on‑resistance.
Key sections include absolute maximum ratings, thermal data, avalanche characteristics, dynamic switching parameters, safe operating area curves, and detailed mechanical dimensions for TO‑220, TO‑220FP, DPAK and other package types.
| Drain‑source Voltage (Vds) | 800 V |
|---|---|
| Thermal Resistance Junction‑case (RθJC) | 0.93 °C/W |
The devices are rated for a maximum drain‑source voltage of 800 V.
