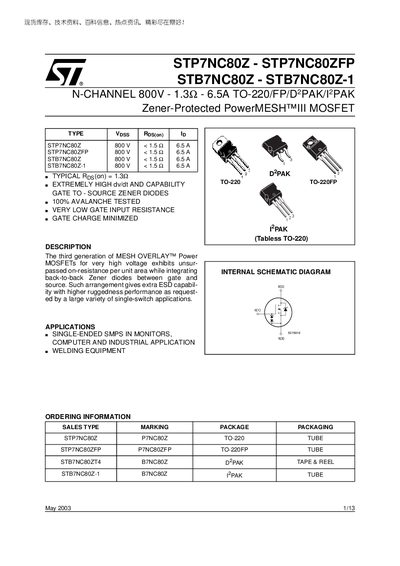

STMicroelectronics STP7NC80Z/ STP7NC80ZFP/ STB7NC80Z/ STB7NC80Z-1 Datasheet
This datasheet provides the electrical, thermal and mechanical specifications for the STP7NC80Z, STP7NC80ZFP, STB7NC80Z and STB7NC80Z‑1 MOSFETs. The devices are 800 V, 6.5 A N‑channel power MOSFETs with integrated gate‑source Zener diodes for enhanced ESD protection.
Key sections include absolute maximum ratings, detailed electrical characteristics, avalanche and protection features, as well as package dimensions and footprint data for TO‑220, TO‑220FP, D2PAK and DPAK variants.
All STMicroelectronics STP7NC80Z documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Do these MOSFETs include built‑in protection?
Yes, they have back‑to‑back gate‑source Zener diodes that enhance ESD capability and protect against voltage transients.
From: STMicroelectronics STP7NC80Z/ STP7NC80ZFP/ STB7NC80Z/ STB7NC80Z-1 Datasheet
What is the maximum drain‑source voltage for the STP7NC80Z series?
The devices are rated for a maximum drain‑source voltage of 800 V.
From: STMicroelectronics STP7NC80Z / STP7NC80ZFP / STB7NC80Z / STB7NC80Z-1 Datasheet
