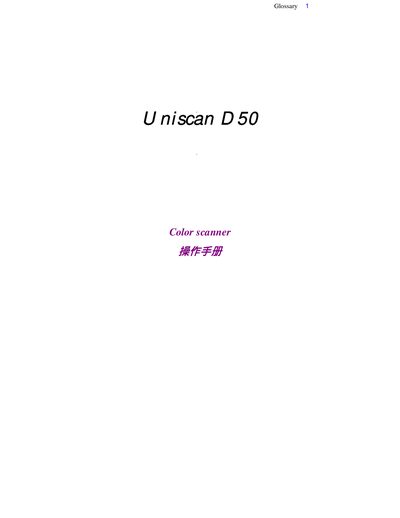

This is the user manual of Uniscan D50 color scanner, which introduces the appearance, installation, use method, troubleshooting and other contents of the scanner.
This manual guides you through installing the Uniscan D50 flatbed scanner, connecting it to a PC with a USB interface, and observing safety precautions such as using the correct 12 V DC power supply and keeping the device away from water. It also explains the front‑panel buttons for Scan, Copy, Email and Save functions.
The document details the scanner’s technical specifications, including a scanning area of 216 × 297 mm, maximum resolution up to 9600 × 9600 dpi, TWAIN driver support, and operating conditions (10‑40 °C, 20‑80 % humidity). Troubleshooting and maintenance sections help you resolve common issues and keep the optical glass clean for optimal image quality. This manual is written in Chinese.
| Scanning area | 216 × 297 mm (8.5 × 11.7 in) |
|---|---|
| Maximum resolution | 9600 × 9600 dpi |
| Driver standard | TWAIN |
| Input voltage | 220 VAC ±10 %, 50 Hz |
| Power supply | DC 12 V, 1.2 A |
| Operating temperature | 10 °C – 40 °C |
| Relative humidity | 20 % – 80 % |
| Dimensions | 480 mm × 315 mm × 95.7 mm |
| Weight | 4.8 kg |
Press the Scan button on the front panel to begin scanning the document.
Press the Copy button; the scanned image will be sent directly to the printer.
The scanner needs a regulated 12 V DC power supply delivering up to 1.2 A.
