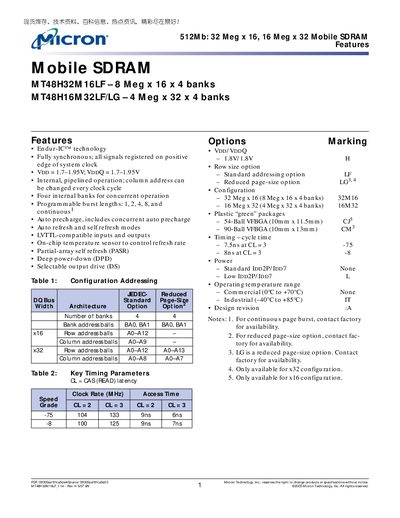

MT48H32M16LF/LG is a Mobile SDRAM chip produced by Micron Technology. This chip has Endur-IC technology, supports 1.7-1.95V voltage, and has four banks that can work simultaneously. It also supports programmable burst lengths, including 1, 2, 4, 8, and continuous bursts.
The Micron MT48H32M16LF is a 512 Mb mobile SDRAM offering a fully synchronous interface with programmable burst lengths and multiple power‑saving modes. It is available in two density configurations (32 M × 16 and 16 M × 32) and supports both commercial and industrial temperature ranges.
The device is supplied in 54‑ball and 90‑ball VFBGA packages, operates from 1.7 V to 1.95 V, and provides features such as auto‑precharge, deep power‑down, on‑chip temperature sensor and LVTTL‑compatible I/Os.
| Capacity | 512 Mb (536,870,912 bits) |
|---|---|
| Supply Voltage | VDD = 1.7‑1.95 V; VDDQ = 1.7‑1.95 V |
| CAS Latency | CL = 2 or CL = 3 |
| Clock Rate | 75 MHz (9 ns) or 100 MHz (7 ns) |
| Burst Lengths | 1, 2, 4, 8, continuous |
| Package Types | 54‑ball VFBGA (10 mm × 11.5 mm) and 90‑ball VFBGA (10 mm × 13 mm) |
| Operating Temperature – Commercial | 0 °C to +70 °C |
| Operating Temperature – Industrial | 40 °C to +85 °C |
| Power‑saving Modes | Deep Power‑Down (DPD), Auto Refresh, Self Refresh |
| On‑chip Temperature Sensor | Provides refresh‑rate control |
It operates from 1.7 V to 1.95 V for both VDD and VDDQ.
The part is offered in a 54‑ball VFBGA (10 mm × 11.5 mm) and a 90‑ball VFBGA (10 mm × 13 mm).
Burst lengths of 1, 2, 4, 8, and continuous are programmable.
Commercial range is 0 °C to +70 °C; industrial range is 40 °C to +85 °C.
