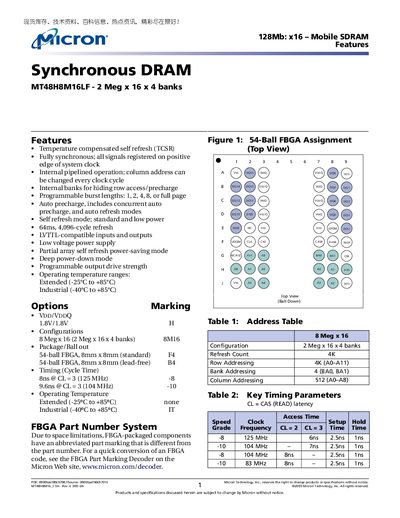

This document describes Micron's synchronous DRAM product MT48H8M16LF, which features temperature compensated self refresh, fully synchronous operation, internal pipelined operation, and hiding row access/precharge.
The Micron MT48H8M16LF is a 128 Mb (x16) mobile SDRAM built on a 54‑ball FBGA package (8 mm × 8 mm). It operates at 1.8 V and supports temperature ranges from –25 °C to +85 °C (extended) or –40 °C to +85 °C (industrial). The device offers fully synchronous operation with programmable burst lengths, auto‑precharge, and multiple power‑saving modes.
Key functional blocks include a quad‑bank architecture, internal pipelined operation, and LVITL‑compatible I/O. Detailed timing diagrams, mode register definitions, and command descriptions are provided for system integration and initialization procedures.
| Capacity | 128 Mbit, x16 |
|---|---|
| Package | 54‑ball FBGA, 8 mm × 8 mm |
| Operating Temperature (Extended) | -25 °C to +85 °C |
| Operating Temperature (Industrial) | -40 °C to +85 °C |
| Burst Lengths | 1, 2, 4, 8, full page |
| CAS Latency Options | CL=2, CL=3 |
| Refresh Interval | 64 ms, 4,096‑cycle refresh |
Extended range is –25 °C to +85 °C, and industrial range is –40 °C to +85 °C.
It is supplied in a 54‑ball FBGA package measuring 8 mm × 8 mm.
Burst lengths of 1, 2, 4, 8, or a full page can be programmed.
