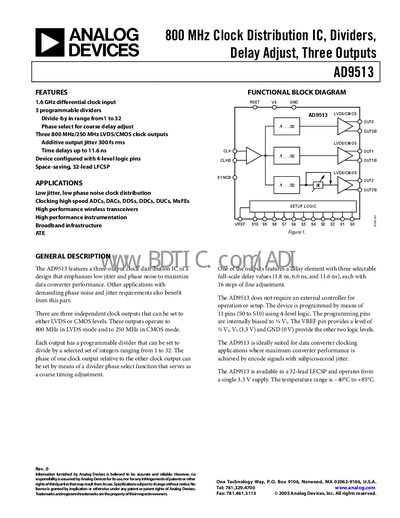

This product is an 800MHz clock distribution IC with dividers, delay adjust, and three outputs.
The AD9513 is an 800 MHz clock distribution IC with three independent outputs that can be configured as LVDS or CMOS. It offers programmable dividers (1‑32), coarse delay adjustment, and low‑jitter performance suitable for high‑speed data converters and wireless transceivers.
The document provides functional block diagrams, detailed electrical specifications, timing characteristics, phase‑noise and jitter data, pin configurations, power‑supply guidelines, and application notes for using the device in clock‑distribution systems.
| Clock Input Frequency | 1.6 GHz |
|---|---|
| Input Sensitivity (single‑ended) | 150 mV p‑p |
| LVDS Output Frequency | 800 MHz |
| CMOS Output Frequency | 250 MHz |
| Phase Noise @ 10 Hz offset | -100 dBc/Hz |
| Supply Voltage | 3.3 V |
| Operating Temperature Range | ‑40 °C to +85 °C |
The AD9513 accepts a clock input up to 1.6 GHz.
It provides three programmable dividers with a divide‑by range from 1 to 32.
