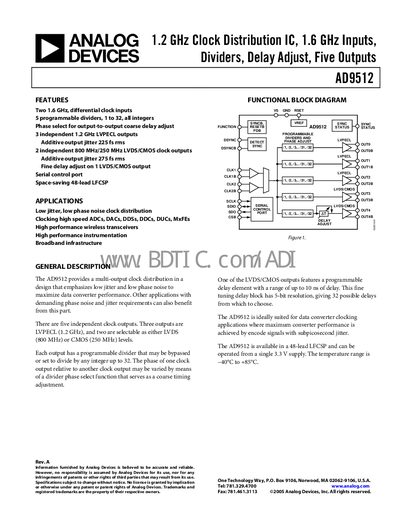

AD9512 is a 1.2 GHz clock distribution IC with 1.6 GHz inputs, dividers, delay adjustment and five outputs.
The AD9512 provides five independent clock outputs—three LVPECL at 1.2 GHz and two selectable LVDS (800 MHz) or CMOS (250 MHz) outputs. Each output includes a programmable integer divider (1‑32) and fine‑delay adjustment for precise timing.
Designed for low jitter and low phase‑noise applications, the device operates from a single 3.3 V supply and works over a temperature range of –40 °C to +85 °C. It is offered in a 48‑lead LFCSP package and includes a serial control port for configuration.
| Clock input frequency | 1.6 GHz |
|---|---|
| LVDS output frequency | 800 MHz |
| CMOS output frequency | 250 MHz |
| Supply voltage | 3.3 V |
| Operating temperature range | -40 °C to +85 °C |
| Additive output jitter (LVPECL) | 225 fs rms |
| Additive output jitter (LVDS/CMOS) | 275 fs rms |
| Programmable dividers per output | 1‑32 (integer) |
The AD9512 operates from a single 3.3 V supply.
The device is rated for –40 °C to +85 °C.
The LVPECL outputs have 225 fs rms jitter, while the LVDS/CMOS outputs have 275 fs rms jitter.
