The product is a 622 Mbps clock and data recovery IC with integrated limiting amplifier.
The ADN2804 is a 622 Mbps clock and data recovery IC with integrated limiting amplifier, offering jitter‑transfer, jitter‑generation, and jitter‑tolerance that meet SONET requirements. It locks to incoming data without an external reference clock and includes loss‑of‑signal and loss‑of‑lock detection features.

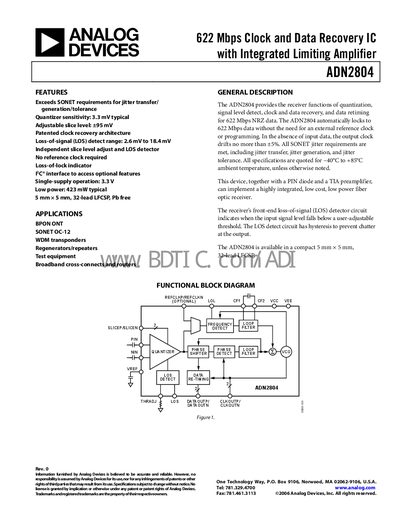

The handbook contains detailed sections on features, applications, functional block diagram, specifications (including jitter, output, timing, and absolute maximum ratings), pin configuration, typical performance, PC‑interface timing, and ordering information, providing designers with all necessary data to integrate the device into fiber‑optic receivers and related equipment.
| Data Rate | 622 Mbps |
|---|---|
| Power Supply Voltage | 3.0 – 3.6 V |
| Power Supply Current (locked) | 128 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Input Voltage Range (DC‑coupled) | 1.8 – 2.8 V |
The ADN2804 operates at a data rate of 622 Mbps.
No, the ADN2804 automatically locks to the incoming 622 Mbps data without an external reference clock.
The device is specified for operation from –40 °C to +85 °C.
