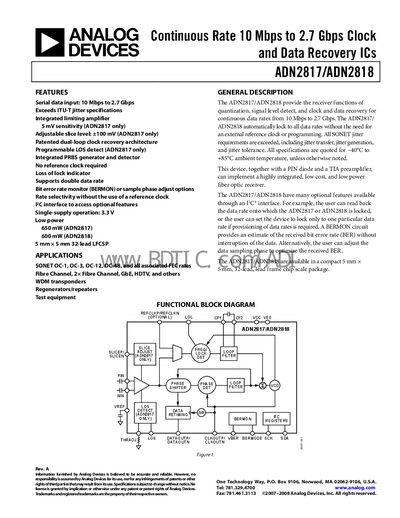

This document describes the features and characteristics of Analog Devices' ADN2817/ADN2818 Clock and Data Recovery ICs, which support a continuous rate of 10 Mbps to 2.7 Gbps.
The ADN2817 and ADN2818 are continuous‑rate clock and data recovery ICs covering data rates from 10 Mbps to 2.7 Gbps. They lock to any data rate without an external reference clock and include integrated limiting amplifiers, PRBS generator/detector, and loss‑of‑signal detection.
The document lists electrical characteristics such as a 3.3 V single‑supply operation, typical power consumption of 650 mW (ADN2817) or 600 mW (ADN2818), input voltage range 1.8‑2.8 V, and output swing specifications. It also describes the I²C interface for programmable features, jitter performance, and timing parameters.
| Data Rate | 10 Mbps to 2.7 Gbps |
|---|---|
| Power Supply Voltage | 3.0 V – 3.6 V |
| Typical Power Consumption (ADN2817) | 650 mW |
| Operating Temperature Range | -40 °C to +85 °C |
The ADN2817 typically consumes 650 mW of power.
It supports continuous data rates from 10 Mbps up to 2.7 Gbps.
The device operates from –40 °C to +85 °C.
No, it automatically locks to all data rates without an external reference clock.
