This file is a PCB printed circuit board design file, which mainly describes the package size and pad layout of SOT407-1

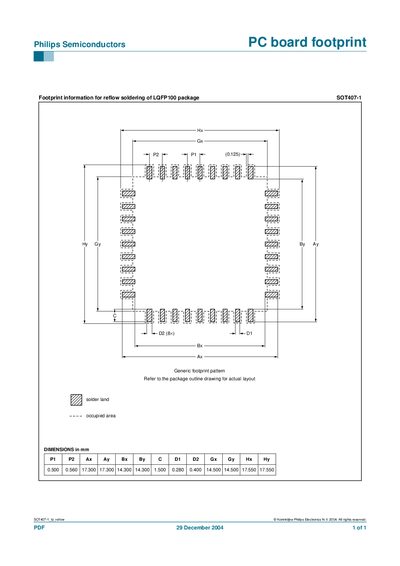

The document supplies the PCB footprint data required for reflow soldering of the Philips SOT407-1 device, which uses an LQFP100 package. It includes a generic footprint pattern and references the package outline drawing for the exact layout.
Key dimensions such as pad pitch, pad size, and overall land area are listed in millimetres, enabling designers to create accurate board layouts that meet Philips' manufacturing specifications.
The footprint is for the LQFP100 package.
Refer to the package outline drawing for the actual layout.
