NXP SOT962-3 PC Board Footprint Datasheet

This document provides the PCB footprint information for SOT962-3, including dimensions, solder pads position etc.

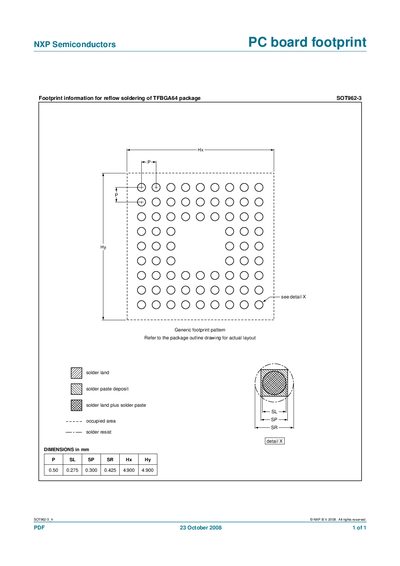

NXP SOT962-3 PC Board Footprint Datasheet - cover page
Brand
NXP
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
1
File format
PDF
File size
10 KB
Published
22 March, 2012
Updated
30 September, 2023
MD5 checksum
9644E4DC945AD63D3D62C77E8A17ED31

About this manual

This document supplies the PCB footprint information required for reflow soldering of the NXP SOT962-3 (TFBGAG4) package. It includes a generic footprint pattern and references to the package outline drawing for the actual layout.

The dimensions are given in millimetres for pad size, solder paste area, and overall occupied area, enabling accurate board design and manufacturing.

What's inside

  • Footprint Information
  • Generic Footprint Pattern
  • Dimensions

Specifications

Pad length (P)0.50 mm
Pad width (SL)0.275 mm
Solder paste length (sP)0.300 mm
Solder paste width (SR)0.425 mm
Footprint height (Hx)4.900 mm
Footprint width (Hy)4.900 mm

Frequently asked questions

What is the generic footprint pattern for the SOT962-3 package?

The SOT962-3 uses a generic footprint pattern as shown in the document, with specific pad and solder paste dimensions.

What are the PCB dimensions for the SOT962-3 footprint?

The footprint dimensions are 0.50 mm (P), 0.275 mm (SL), 0.300 mm (sP), 0.425 mm (SR), and 4.900 mm for both height (Hx) and width (Hy).
