NXP SOT913-1 PC Board Footprint Manual

This is a SOT913-1 PCB footprint drawing.

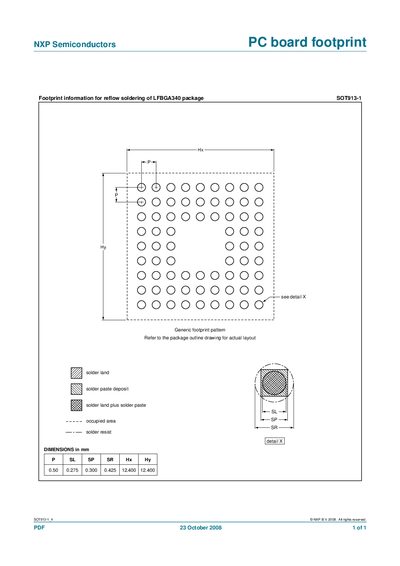

NXP SOT913-1 PC Board Footprint Manual - cover page
Brand
NXP
Category
electronic components
Document type
Product Leaflet
Language
English
Pages
1
File format
PDF
File size
10 KB
Published
22 March, 2012
Updated
30 September, 2023
MD5 checksum
478BAD3F22EC1433028B3A5779FA9A24

About this manual

This document supplies the recommended PCB footprint for the NXP SOT913-1 device, which uses an LFBGA340 package. It includes pad layout, solder land markings, and reflow soldering instructions.

The footprint dimensions are listed in millimetres, with specific values for pad length, width, spacing, and overall occupied area. Refer to the package outline drawing for the exact layout before designing the board.

What's inside

  • Footprint information
  • Generic footprint pattern
  • Dimensions

Specifications

Pad length (SL)0.50 mm
Pad width (SP)0.275 mm
Pad spacing (SR)0.300 mm
Pad height (Hx)0.425 mm
Occupied area (X dimension)12.400 mm
Occupied area (Y dimension)12.400 mm

Frequently asked questions

What package does the SOT913-1 use?

The SOT913-1 uses the LFBGA340 package.

What are the PCB dimensions for the SOT913-1 footprint?

The footprint dimensions are 0.50 mm (pad length), 0.275 mm (pad width), 0.300 mm (pad spacing), 0.425 mm (pad height), with an occupied area of 12.400 mm × 12.400 mm.
