NXP SOT1088-1 PC Board Footprint Manual

This document provides information about the PC board footprint dimensions of the SOT1088-1 package from NXP B.V. 2008. It includes details about solder land dimensions, solder paste occupied area, etc.

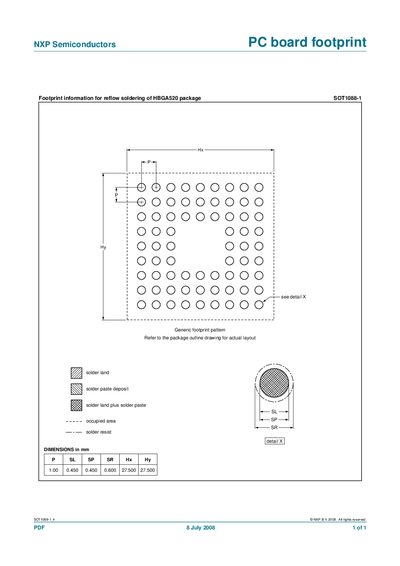

NXP SOT1088-1 PC Board Footprint Manual - cover page
Brand
NXP
Category
Other Electronics
Document type
Product Leaflet
Language
English
Pages
1
File format
PDF
File size
10 KB
Published
22 March, 2012
Updated
29 September, 2023
MD5 checksum
733037CFB0339C361B4BDF99D2DC1DD6

About this manual

This document describes the recommended PCB footprint for the NXP SOT1088-1 HBGA520 package, including solder land and paste deposit information for reflow soldering.

It lists the generic footprint pattern, key dimensions in millimetres, and refers to the package outline drawing for the actual layout details.

What's inside

  • Footprint Overview
  • Solder Land and Paste Guidelines
  • Generic Footprint Pattern
  • Dimensions

Specifications

Pad length (SL)1.00 mm
Pad width (SP)0.450 mm
Solder resist width (SR)0.450 mm
Pad height (Hx)0.600 mm
Pad spacing (Hy)27.500 mm

Frequently asked questions

Which package does this footprint apply to?

It applies to the HBGA520 package SOT1088-1.

Where can I find the actual layout for the footprint?

Refer to the package outline drawing for the actual layout.
