NXP Semiconductors SOT1085-1 PC board footprint manual

This document provides information about the PC board footprint dimensions of the NXP SOT1085-1 package. It describes the dimensions of the solder land and solder paste deposit, as well as the generic footprint pattern for reflow soldering.

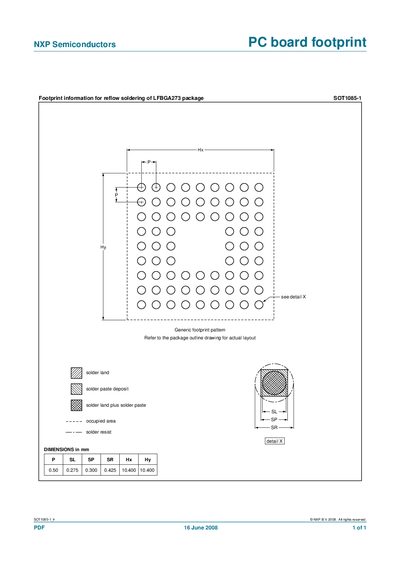

NXP Semiconductors SOT1085-1 PC board footprint manual - cover page
Brand
NXP
Category
Other Electronics
Document type
Product Leaflet
Language
English
Pages
1
File format
PDF
File size
10 KB
Published
22 March, 2012
Updated
29 September, 2023
MD5 checksum
6F93E0C086A92710C8E2307187AF7F5F

About this manual

The document supplies the PCB footprint information required for reflow soldering of the LFBGA273 package identified as OT1085-1. It includes generic pattern guidance and references to the package outline drawing for the actual layout.

Key dimensions are listed in millimetres, specifying pad width, solder land width, solder paste deposit, and overall footprint size. The data helps designers create accurate board layouts that meet NXP's specifications.

What's inside

  • Footprint Information
  • Generic Footprint Pattern
  • Dimensions

Specifications

Pad width (P)0.50 mm
Solder land width (SL)0.275 mm
Solder paste deposit (sP)0.300 mm
Solder resist width (SR)0.425 mm
Footprint height (Hx)10.400 mm
Footprint width (Hy)10.400 mm

Frequently asked questions

Which package does the OT1085-1 footprint correspond to?

The OT1085-1 footprint is for the LFBGA273 package.

What are the key PCB dimensions for the OT1085-1 footprint?

The footprint dimensions are P=0.50 mm, SL=0.275 mm, sP=0.300 mm, SR=0.425 mm, Hx=10.400 mm, Hy=10.400 mm.
