Philips SOT542-1 PC Board Footprint Manual

This is a technical manual about SOT542-1. It contains information about the size, soldering pad, solder paste of SOT542-1

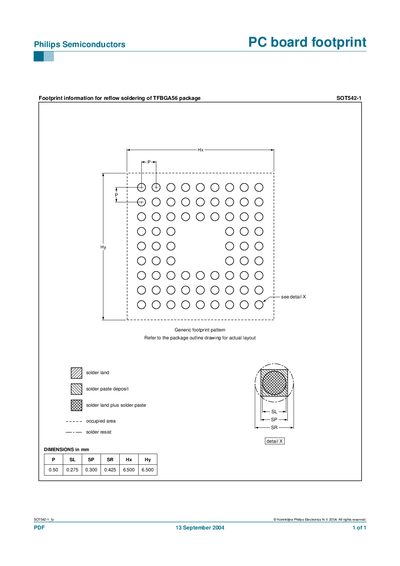

Philips SOT542-1 PC Board Footprint Manual - cover page
Brand
Philips
Category
Other Electronics
Document type
Product Leaflet
Language
English
Pages
1
File format
PDF
File size
11 KB
Published
22 March, 2012
Updated
30 September, 2023
MD5 checksum
19DF396A2EEADFC263D6B8C601D73872

About this manual

This document provides the PCB footprint information required for reflow soldering of the Philips SOT542-1 (TFBGA56) package. It includes a generic footprint pattern and references to the package outline drawing for the actual layout.

Key dimensions are listed in millimetres, along with recommended solder land and paste deposit areas. The data helps designers create correct pad sizes and solder resist areas for reliable assembly.

What's inside

  • Footprint information for reflow soldering
  • Generic footprint pattern
  • Package outline drawing reference
  • Solder land and paste deposit
  • Occupied area and solder resist
  • Dimensions in mm

Specifications

Pad width (P)0.50 mm
Solder land width (SL)0.275 mm
Solder paste width (sP)0.300 mm
Solder resist width (SR)0.425 mm
Footprint height X (Hx)6.500 mm
Footprint height Y (Hy)6.500 mm

Frequently asked questions

What is the generic footprint pattern for the Philips SOT542-1 package?

The document provides a generic footprint pattern and advises to refer to the package outline drawing for the actual layout.

What are the dimension values for the SOT542-1 footprint?

The dimensions are P=0.50 mm, SL=0.275 mm, sP=0.300 mm, SR=0.425 mm, Hx=6.500 mm, Hy=6.500 mm.
