CM150DY-24A is a power IGBT module manufactured by Mitsubishi Electric. It has a rated current of 150A and a rated voltage of 1200V. It is insulated and packaged in 2 modules per heatsink. It is mainly used in AC drive inverters and servo controls.

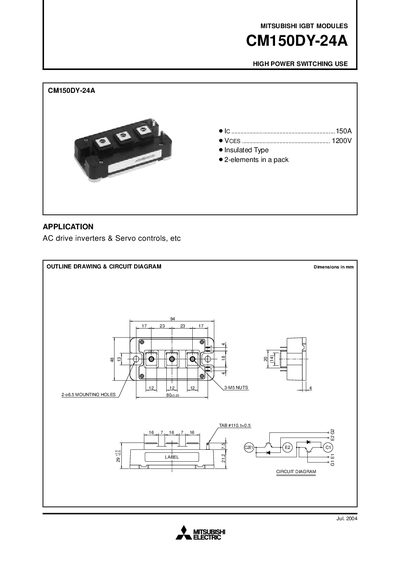

The CM150DY-24A is a high‑power IGBT module intended for use in AC drive inverters, servo controls and similar applications. The document lists absolute maximum ratings, electrical characteristics and typical performance curves, helping designers select the device for high‑voltage, high‑current switching tasks.
Key data include collector‑emitter voltage, pulsed current capability, thermal resistance and isolation voltage, together with detailed graphs of switching loss, reverse recovery and gate charge. Physical dimensions, mounting hole specifications and typical weight are also provided.
| Junction temperature range (Tj) | -40 °C ~ +150 °C |
|---|---|
| Typical weight | 310 g |
| Mounting hole size | M6 |
The typical weight is about 310 g.
