The document describes the features and characteristics of the Mitsubishi IGBT module CM200DY-24A, which was released in July 2004. This module is designed for high power switching applications, such as AC drive inverters and servo controls.

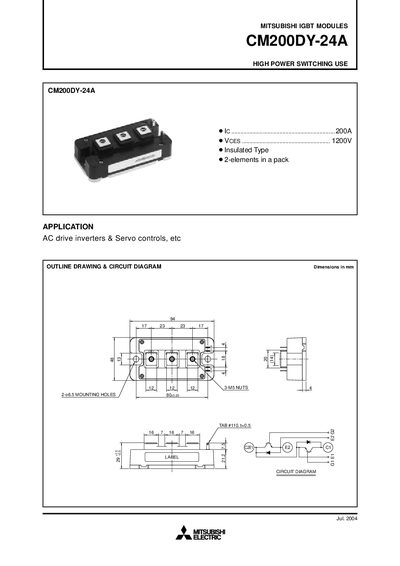

This datasheet describes the CM200DY-24A insulated‑type IGBT module, intended for use in AC drive inverters, servo controls and similar high‑power switching applications. It includes an outline drawing, circuit diagram, and mechanical dimensions.
Electrical specifications such as maximum voltage, current, power dissipation, thermal resistance and switching characteristics are provided, along with typical performance curves for collector‑emitter voltage, gate‑emitter voltage, and reverse‑recovery behavior.
| Emitter current (Ie) pulse | 400 A |
|---|---|
| Junction temperature range (Tj) | 40 ~ +150 °C |
| Typical weight | 310 g |
The module can be stored between 40 °C and 125 °C.
