CM100DY-24A is a Mitsubishi IGBT module with a rated voltage of 1200V and a rated current of 100A. It uses a double-sided heat dissipation structure for good heat dissipation performance.

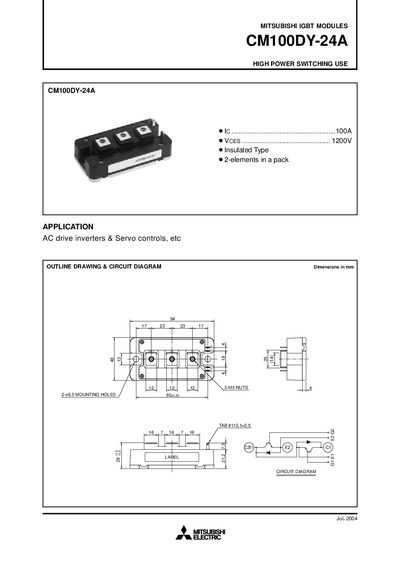

The CM100DY-24A is a high‑power insulated IGBT module designed for AC drive inverters, servo controls and similar applications. The datasheet provides absolute maximum ratings, electrical characteristics, and detailed performance curves.
Key sections include absolute maximum ratings, collector‑emitter voltage and current limits, thermal impedance data, switching loss characteristics, and gate‑charge information, all measured under typical test conditions.
| Gate‑emitter voltage (VGES) | +20 V |
|---|---|
| Collector current (pulse) | 200 A |
| Maximum collector dissipation (Pc) | 672 W |
| Junction temperature range (Tj) | 40 ~ +150 °C |
| Storage temperature range (Tsig) | 40 ~ +125 °C |
| Isolation voltage (Viso) | 2500 V (1 min) |
The module can handle a pulse collector current of up to 200 A.
It offers an isolation voltage of 2500 V for at least one minute.
The junction temperature can be between 40 °C and +150 °C.
