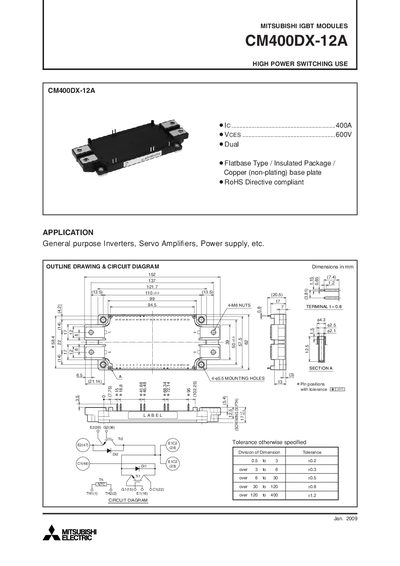

This document describes the features and characteristics of the MITSUBISHI IGBT module CM400DX-12A produced in January 2009, which is suitable for high power switching applications such as general purpose inverters, servo amplifiers, and power supplies.
The Mitsubishi CM400DX-12A is a high‑power IGBT module designed for inverter, servo amplifier and power‑supply applications. The document provides absolute maximum ratings, electrical characteristics, thermal data and typical performance curves.
Key features include a 600 V collector‑emitter voltage, 400 A continuous collector current, RoHS compliance and a flat‑base insulated package. Detailed dimensions, pin positions and switching‑time test circuits are also included.
| Collector‑emitter voltage (VcES) | 600 V |
|---|---|
| Gate‑emitter voltage (VGES) | +20 V |
| Maximum collector dissipation (Pc) | 1340 W |
| Junction temperature range (Tj) | -40 °C to +150 °C |
| Isolation voltage (Viso) | 2500 Vrms |
| Typical weight | 330 g |
| NTC thermistor resistance (R0) | 4.85 kΩ – 5.15 kΩ |
The typical weight is 330 g.
The junction temperature can operate from –40 °C up to +150 °C.
