CM200RX-12A is a high-power switching IGBT module manufactured by Mitsubishi Electric. It has a maximum current of 200A and a maximum voltage of 600V. The module is designed with a flat base and an insulated package. It is widely used in general inverters and servo amplifiers.

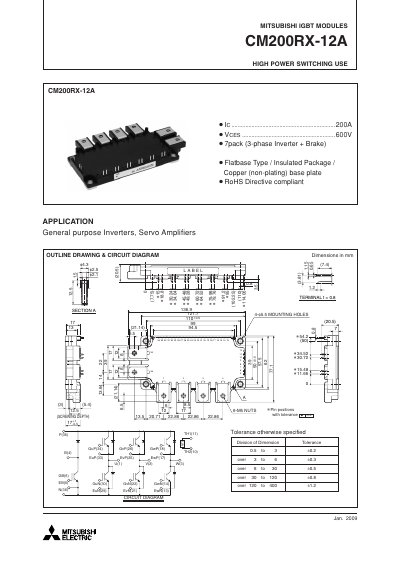

The CM200RX-12A is a high‑power IGBT module designed for three‑phase inverter and brake applications, such as general‑purpose inverters and servo amplifiers. The document lists the module’s outline drawing, mounting dimensions and recommended installation guidelines.
Key specifications include a 600 V collector‑emitter voltage rating, up to 200 A continuous collector current, 735 W maximum dissipation, junction temperature range of –40 °C to +150 °C, and a typical weight of 330 g. Performance curves and switching characteristics for both inverter and brake parts are provided, along with thermal resistance values and isolation voltage data.
| Junction temperature range | -40 °C to +150 °C |
|---|---|
| Storage temperature range | -40 °C to +125 °C |
| Typical weight | 330 g |
| Mounting screw torque | 25–3.5 Nm |
The typical weight is 330 g.
It can operate from –40 °C up to +150 °C junction temperature.
