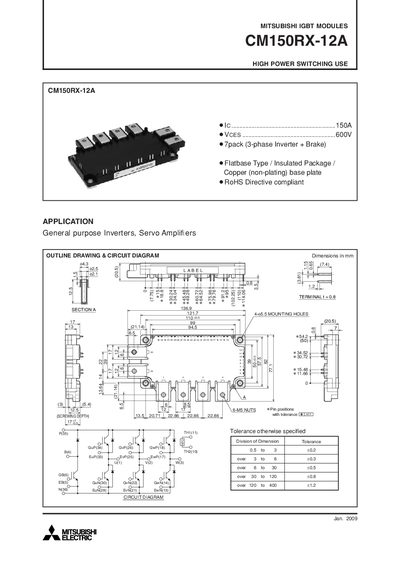

This document describes the features and characteristics of the MITSUBISHI IGBT MODULES CM150RX-12A high power switching module released in January 2009. The module is suitable for general purpose inverters and servo amplifiers, and is RoHS Directive compliant. It has dimensions of 22mm x 39mm x 14mm, with a rated voltage of 600V and a rated current of 150A.
The Mitsubishi CM150RX-12A is a high‑power IGBT module designed for three‑phase inverter and brake applications. It features a flat‑base insulated package, RoHS compliance, and is suitable for general‑purpose inverters and servo amplifiers.
The document provides absolute maximum ratings, electrical characteristics, thermal data, and performance curves for both the inverter and brake parts, including collector‑emitter voltage, current limits, dissipation ratings, isolation voltage, and thermal resistance values.
