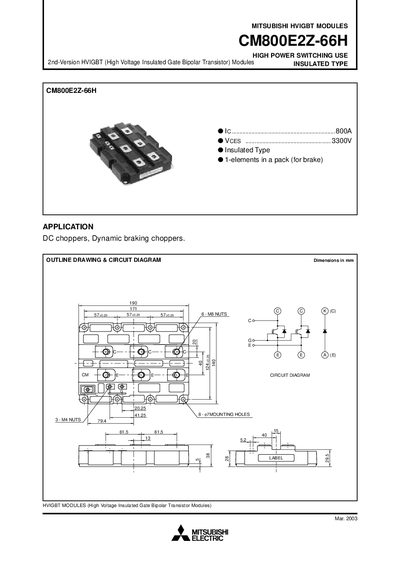

This document describes the high power switching and insulation characteristics of the 2003 Mitsubishi HVIGBT module CM800E2Z-66H. The module is suitable for DC choppers and dynamic braking choppers.
The CM800E2Z-66H is a high‑voltage insulated‑gate bipolar transistor (HVIGBT) module designed for high‑power switching, such as DC choppers and dynamic braking choppers. It is an insulated‑type, 1‑element pack intended for brake applications.
The datasheet lists maximum voltage and current ratings, thermal limits, mechanical dimensions, and detailed performance curves including switching times, gate charge, and reverse‑recovery characteristics. Key mechanical data such as mounting torque and module mass are also provided.
| Continuous collector current (I_C) | 800 A |
|---|---|
| Pulse collector current (I_C pulse) | 1600 A |
| Junction temperature range (Tj) | -40 °C to +150 °C |
| Module mass | 2.2 kg |
| Mounting torque (M8 screw) | 6.67 – 13.00 N·m |
The module can conduct a continuous collector current of 800 A.
The module has a typical mass of about 2.2 kg.
