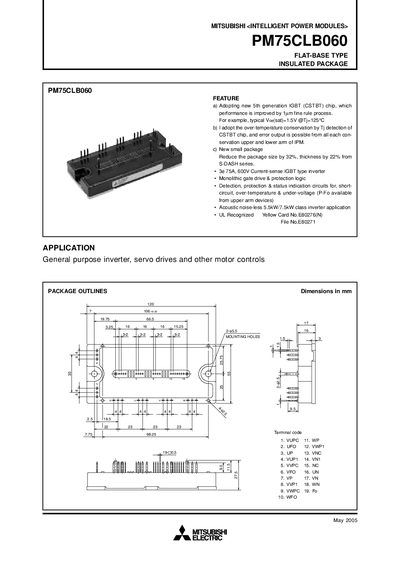

PM75CLB060 FLAT-BASE TYPE INSULATED PACKAGE is a power module produced by Mitsubishi Electric. It adopts 5th generation IGBT (CSTBT) chip, which has better performance than S-DASH series.
The PM75CLB060 is a flat‑base, insulated intelligent power module that uses a 5th‑generation IGBT (CSTBT) chip. It offers a compact package, monolithic gate‑drive and protection logic, and is suitable for 5.5 kW‑7.5 kW class inverter applications.
The manual provides detailed electrical and mechanical ratings, recommended operating conditions, testing precautions, and performance curves to help designers integrate the module safely into general‑purpose inverters, servo drives and other motor‑control systems.
| Collector‑Emitter Voltage (VCE(sat)) | 1.5 V @ Tj=125 °C |
|---|---|
| Continuous Collector Current | 75 A |
| Peak Collector Current | 150 A |
| Power Dissipation | 390 W |
| Junction Temperature Range | -20 °C to +150 °C |
| Weight | 340 g |
The module can handle up to 75 A continuous collector current.
The module is rated for junction temperatures from –20 °C up to +150 °C.
Typical VCE(sat) is 1.5 V at a junction temperature of 125 °C.
