PM25CLA120 is a 3-phase 25A, 1200V intelligent power module that uses CSTBT chips to improve performance. It also has short-circuit, over-temperature, and under-voltage protection and is ideal for general-purpose inverters, servo drives, and other motor controllers.

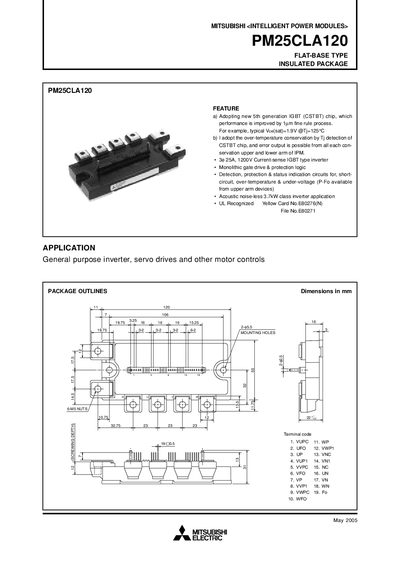

The manual provides detailed information on the PM25CLA120 flat‑base insulated power module, including its features, electrical and mechanical ratings, and recommended application areas such as general‑purpose inverters and servo drives. It contains block diagrams, terminal codes, maximum ratings, and performance curves for the 25 A, 1200 V IGBT device.
Additional sections cover testing precautions, wiring recommendations, and notes for stable and safe operation, helping designers integrate the module into inverter circuits while ensuring protection against over‑temperature, short‑circuit and under‑voltage conditions.
| Junction Temperature Range | -20 °C ~ +150 °C |
|---|---|
| Supply Voltage (VD) | 13.5 V – 16.5 V |
| Weight | 380 g |
The module includes short‑circuit, over‑temperature, and under‑voltage detection with fault output signals for each arm.
The control supply voltage (VD) should be between 13.5 V and 16.5 V.
