PM75CL1A120 is a three-phase 75A, 1200V intelligent power module that uses the latest fifth-generation full-gate CSTBTTM chip. It integrates a driver and protection circuit, and has short-circuit, over-temperature, and under-voltage protection functions.
The PM75CL1A120 is a flat‑base, insulated Intelligent Power Module that integrates an inverter, drive, and protection IC. It features a 5th‑generation Full‑Gate CSTBT chip, over‑temperature detection, short‑circuit and under‑voltage protection, and fault‑output signals for each arm.

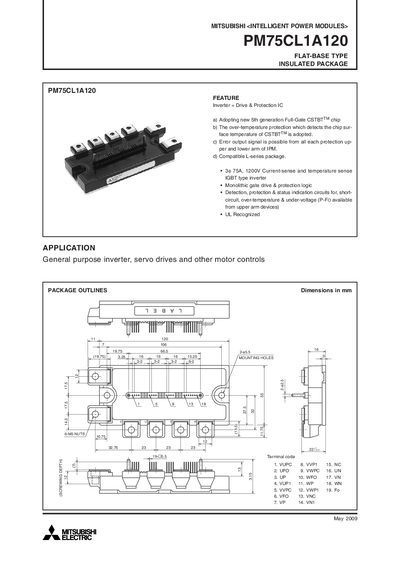

The document lists maximum electrical ratings, mechanical dimensions, recommended operating conditions, testing precautions, and extensive performance curves such as collector‑emitter saturation voltage, switching times, and transient thermal impedance. It also includes wiring recommendations and PCB layout tips for reliable motor‑drive applications.
| Continuous Collector Current | 75 A |
|---|---|
| Junction Temperature Range | -20 °C to +150 °C |
| Weight | 380 g |
It can continuously conduct up to 75 A.
The device provides over‑temperature, short‑circuit, under‑voltage, and fault‑output protection for each arm.
