PM100CL1A120 is a 3-phase 100A, 1200V IGBT type inverter, which adopts a new 5th generation full-gate CSTBTTM chip, and integrates drive and protection circuits, has short-circuit, over-temperature, under-voltage detection and protection functions, and supports UL certification.

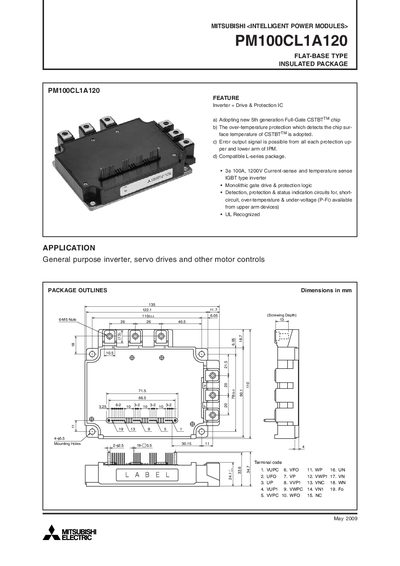

The Mitsubishi Electric PM100CL1A120 is a flat‑base, insulated intelligent power module featuring a 5th‑generation Full‑Gate CSTBT chip, integrated inverter, drive and protection functions. It is intended for general‑purpose inverter, servo drive and motor‑control applications.
The manual provides detailed electrical and mechanical ratings, recommended mounting conditions, testing precautions, performance curves and thermal impedance data to support safe installation, operation and maintenance of the module.
| Junction Temperature Range | -20 to +150 °C |
|---|---|
| Supply Voltage (Protected) | 13.5 to 16.5 V |
| Weight | 800 g |
