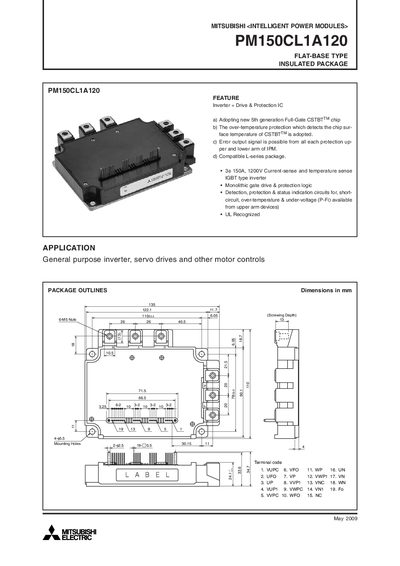

The PM150CL1A120 is a 3φ 150A, 1200V intelligent power module that uses a 5th generation Full-Gate CSTBTTM chip and integrates drive and protection circuits. It also has short-circuit, over-temperature, and under-voltage protection functions and supports UL certification.
The PM150CL1A120 is a flat‑base, insulated Intelligent Power Module featuring a 5th‑generation Full‑Gate CSTBT chip, integrated inverter, drive and protection functions. It is intended for general‑purpose inverters, servo drives and other motor‑control applications.
The manual provides detailed electrical and mechanical ratings, internal block diagrams, performance curves, testing precautions, and recommended operating conditions to ensure safe and reliable use of the module.
| Junction Temperature Range | -20 ~ +150 °C |
|---|---|
| Supply Voltage (VD) | 13.5 ~ 16.5 V |
| Weight | 800 g |
The recommended supply voltage (VD) is 13.5 V to 16.5 V.
It includes over‑temperature protection, short‑circuit protection, under‑voltage protection, and fault output signals for each arm.
