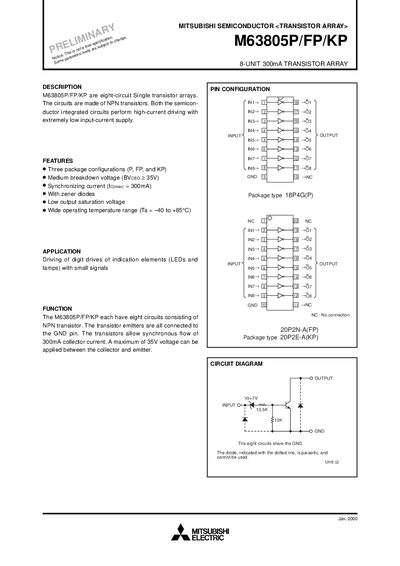

M63805P/FP/KP is a 8-channel 300mA transistor array, semiconductor integrated circuit with extremely low input-current supply and high-current driving capability.
The M63805P/FP/KP is an eight‑circuit NPN transistor array designed for high‑current driving with low input current. It is offered in three package configurations (P, FP, KP) and supports a collector‑emitter voltage up to 35 V and a per‑circuit collector current of 300 mA.
The datasheet lists absolute maximum ratings, recommended operating conditions, and detailed electrical and switching characteristics, including power dissipation, temperature ranges, turn‑on/turn‑off times, and typical gain. Application notes describe use as drivers for LED and lamp indication elements.
| Package type (P version) | 18P4G(P) |
|---|---|
| Collector‑emitter voltage (VCEO) | 0.5 ~ +35 V |
| Collector current per circuit (Ic) | 300 mA |
| Input voltage (VI) | 0.5 ~ +35 V |
| Power dissipation (M63805P) | 1.79 W |
| Operating temperature range | -40 °C ~ +85 °C |
| Storage temperature range | 55 °C ~ +125 °C |
| Turn‑off time | 240 ns |
Each circuit can handle up to 300 mA of collector current.
The device operates from –40 °C to +85 °C.
The maximum collector‑emitter voltage is 35 V.
Three package configurations are offered: P, FP, and KP.
