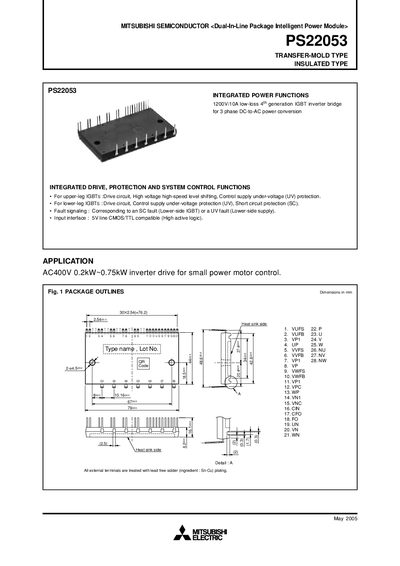

The document introduces the Dual-In-Line Package Intelligent Power Module PS22053 from MITSUBISHI SEMICONDUCTOR. The module is a 1200V/10A low-loss 4th generation IGBT inverter bridge for 3 phase DC-to-AC power conversion. It is suitable for small power motor control in the range of AC400V 0.2kW~0.75kW.
The PS22053 is a dual‑in‑line package (DIP) intelligent power module that integrates IGBT inverter bridges, drive, protection and system control functions for AC‑400 V 0.2 kW‑0.75 kW inverter drives. It supports 1200 V/10 A low‑loss IGBT operation with built‑in fault signaling and under‑voltage protection.
This manual describes the module’s maximum ratings, electrical and thermal characteristics, mechanical mounting data, recommended operating conditions, timing charts for protective functions, and detailed wiring and external protection circuit examples. It also includes guidelines for PCB layout, component selection, and troubleshooting of short‑circuit and under‑voltage events.
| Supply voltage (Vcc) | 900 V |
|---|---|
| Collector‑emitter voltage (VCES) | 1200 V |
| Continuous collector current (Ic) | 10 A |
| Power dissipation per chip | 50 W |
| Junction temperature range | -20 °C to +125 °C |
| Weight | 77 g |
The module can handle up to 900 V supply voltage between P‑NU, NV, NW (with a surge rating of 1000 V).
The module uses a 5 V line CMOS/TTL compatible high‑active logic input.
