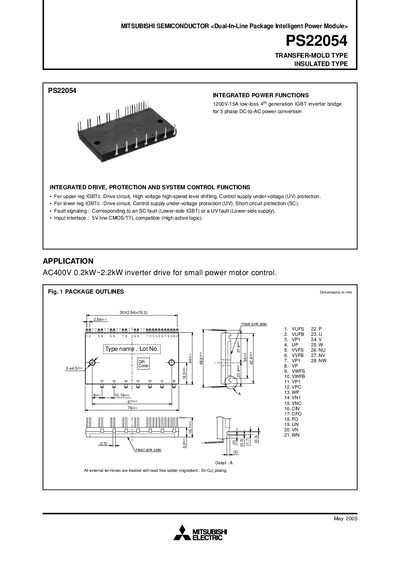

This document introduces the MITSUBISHI SEMICONDUCTOR Dual-In-Line Package Intelligent Power Module PS22054. The module is a transfer-mold type insulated module, suitable for AC400V 0.2kW~2.2kW small power motor control. The module features a 1200V/15A low-loss 4th generation IGBT inverter bridge and integrated drive, protection, and system control functions.
The Mitsubishi PS22054 is a dual‑in‑line package intelligent power module designed for 1200 V/15 A low‑loss IGBT inverter bridges and three‑phase DC‑to‑AC conversion. It integrates drive, protection, and system‑control functions for both upper‑leg and lower‑leg IGBTs, with fault signaling and a 5 V CMOS/TTL compatible input interface.
The manual provides detailed electrical and mechanical ratings, recommended operating conditions, wiring diagrams, and timing charts for short‑circuit and under‑voltage protection. It also includes guidelines for mounting, thermal management, and external protection circuit design.
| Supply voltage (Vcc) | 900 V |
|---|---|
| Collector‑emitter voltage (VCES) | 1200 V |
| Continuous collector current (Ic) | 15 A |
| Power dissipation per chip (Pc) | 56.8 W |
| Mounting torque (M4 screw) | 1.18 N·m (typical 0.98‑1.47 N·m) |
The manual recommends a mounting torque of 1.18 N·m for the M4 mounting screw (typical range 0.98–1.47 N·m).
The module is rated for a supply voltage (Vcc) of 900 V, with a surge rating of up to 1000 V.
The continuous collector current rating is 15 A, with a peak rating of 30 A.
The module uses a 5 V line CMOS/TTL compatible high‑active logic input interface.
