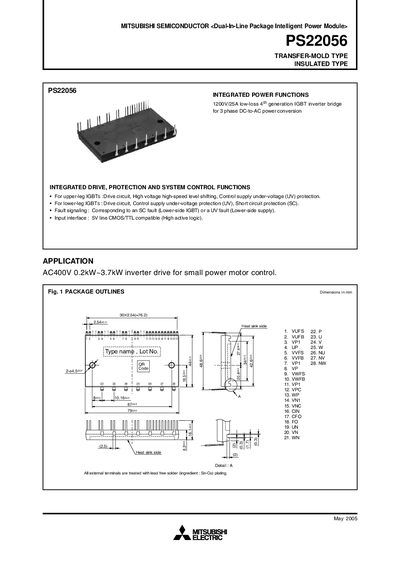

PS22056 is a dual-in-line package intelligent power module that uses 4th generation IGBT technology and integrates drive, protection and system control functions. The module has a rated voltage of 1200V and a rated current of 25A, and is used in AC400V 0.2kW~3.7kW inverter drives for small power motor control.
The PS22056 is a dual‑in‑line package intelligent power module designed for 3‑phase DC‑to‑AC inverter drives up to 3.7 kW. It integrates IGBTs, drive, protection and control functions in a compact insulated, transfer‑molded package.
The manual provides maximum ratings, electrical and thermal characteristics, recommended mounting and wiring practices, and detailed diagrams of internal and external protection circuits, helping designers implement the module safely and efficiently.
| Supply voltage (Vcc) | 350 V – 800 V |
|---|---|
| Surge voltage (Vcesurge) | 1000 V |
| Collector‑emitter voltage (VCE) | 1200 V |
| Continuous collector current per IGBT | 25 A |
| Power dissipation per chip (Pc) | 78.1 W |
| Junction temperature range (Tj) | -20 °C – +125 °C |
| Mounting torque (M4 screw) | 1.18 N·m (typical) |
| Input interface | 5 V CMOS/TTL compatible, high‑active logic |
A torque of about 1.18 N·m (typical) is recommended for the M4 mounting screw.
The module accepts a 5 V CMOS/TTL compatible high‑active logic input.
