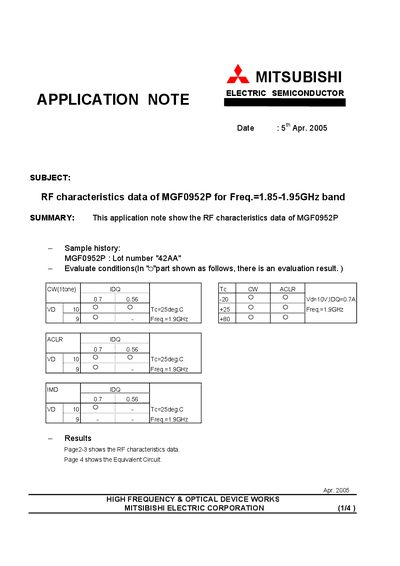

This application note shows the RF characteristics data of MGF0952P, including output power, linearity, harmonic distortion, etc.
The document presents the RF test results of the MGF0952P device, covering the 1.85‑1.95 GHz frequency band. It includes measured parameters such as ACLR, IM3, and power levels under defined test conditions.
Test conditions were Vd = 10 V, IDQ = 0.7 A, and a temperature of 25 °C. The report also shows the equivalent circuit and details of the test fixture used for the measurements.
| Frequency band | 1.85‑1.95 GHz |
|---|---|
| Quiescent current (IDQ) | 0.7 A |
| Lot number | 42AA |
| Test fixture board material | FR4, thickness 0.8 mm |
The RF characteristics were measured over the 1.85‑1.95 GHz band.
The sample has lot number 42AA.
