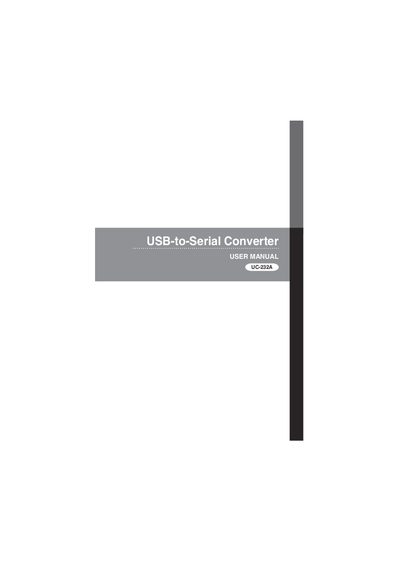

This is a user manual for a USB to Serial converter product
The UC-232A USB-to-Serial Converter adds a plug‑and‑play RS‑232 serial port to any computer with a USB port. It includes a DB‑9 male connector, a 35 cm USB cable, and supports data rates up to 230 Kbps for devices such as phones, PDAs, cameras, and modems.
This manual explains how to install the driver on Windows, connect the converter, configure peripherals, and lists technical specifications, pin assignments, FCC and RoHS compliance, and warranty information.
| Connectors | USB Type A Plug, Serial DB-9 Male |
|---|---|
| Data Transfer Rate | Up to 230 Kbps |
| Cable Length | 35 cm |
| Power Consumption | 450 mW |
| Power Mode | Bus Powered |
| USB Specification | 1.1 Compliant |
| Operating Temperature | 5–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non‑condensing |
| Weight | 60 g |
| Dimensions | 6.59 × 3.4 × 1.6 mm |
The converter supports data transfer rates up to 230 Kbps.
It consumes 450 mW and is bus powered from the USB port.
