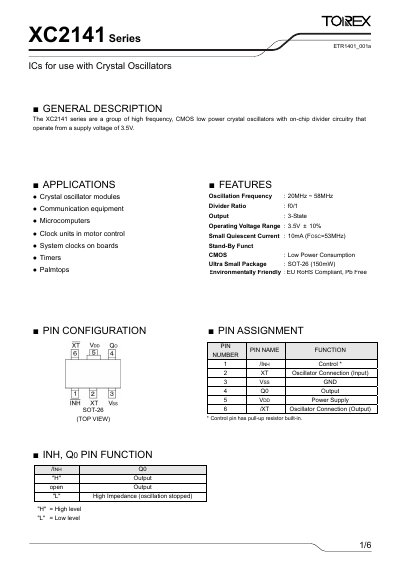

The XC2141 series are a group of high frequency, CMOS low power crystal oscillators with on-chip divider circuitry that operate from a supply voltage of 3.5V.
The XC2141 series are high‑frequency, low‑power CMOS crystal oscillator ICs with an on‑chip divider. They operate from a 3.5 V supply and are offered in an ultra‑small SOT‑26 package.
Key features include a 3‑state output, small quiescent current, and RoHS‑compliant construction. The datasheet lists pin functions, electrical characteristics, and recommended application circuits for communication equipment, microcomputers, motor‑control clocks, and other timing uses. This manual is written in Chinese.
| Oscillation Frequency | 20 MHz ~ 58 MHz |
|---|---|
| Operating Voltage Range | 3.5 V ± 10 % |
| Supply Current (INH = "L") | 520 µA |
| Package | SOT‑26 |
The device operates from 3.5 V with a tolerance of ±10 %.
The supply current is 520 µA when INH is low.
The IC is supplied in an ultra‑small SOT‑26 package.
