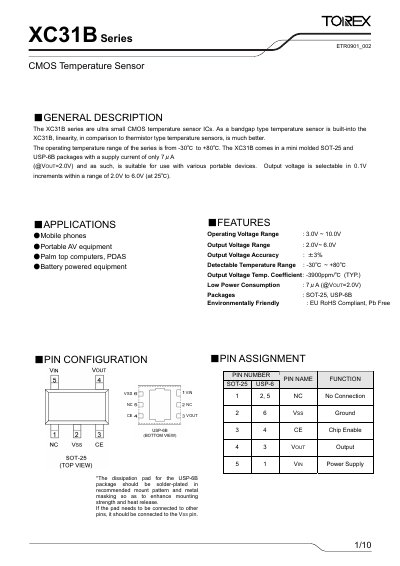

XC31B series are ultra small CMOS temperature sensor ICs. As a bandgap type temperature sensor is built-into the XC31B, linearity, in comparison to thermistor type temperature sensors, is much better. The operating temperature range of the series is from -30℃ to +80℃. The XC31B comes in a mini molded SOT-25 and USP-6B packages with a supply current of only 7μA (@VOUT=2.0V) and as such, is suitable for use with various portable devices. Output voltage is selectable in 0.1V increments within a range of 2.0V to 6.0V (at 25℃).
The XC31B Series is an ultra‑small CMOS temperature sensor IC designed for portable devices. It offers a selectable output voltage from 2.0 V to 6.0 V in 0.1 V steps and operates over a temperature range of –30 °C to +80 °C.
The device is supplied in SOT‑25 and USP‑6B packages with a low supply current of about 7 µA. Detailed electrical characteristics, typical performance curves, and packaging information are provided for designers.
| Operating Voltage Range | 3.0 V ~ 10.0 V |
|---|---|
| Output Voltage Range | 2.0 V ~ 6.0 V |
| Output Voltage Accuracy | ±3 % |
| Detectable Temperature Range | -30 °C ~ +80 °C |
| Output Voltage Temp. Coefficient | -3900 ppm/°C (typ) |
| Low Power Consumption | 7 µA @ VOUT=2.0 V |
| Package Options | SOT‑25, USP‑6B |
The sensor operates from –30 °C to +80 °C.
Output voltage can be set between 2.0 V and 6.0 V in 0.1 V steps.
The device draws about 7 µA when VOUT is set to 2.0 V.
It is available in SOT‑25 and USP‑6B surface‑mount packages.
