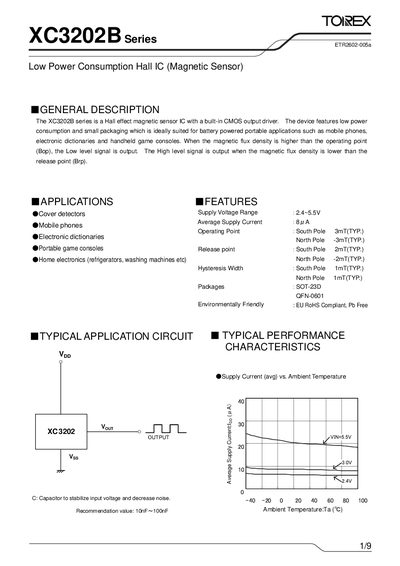

XC3202B Series Low Power Consumption Hall IC (Magnetic Sensor) is a Hall effect magnetic sensor IC with a built-in CMOS output driver. The device features low power consumption and small packaging which is ideally suited for battery powered portable applications such as mobile phones, electronic dictionaries and handheld game consoles. When the magnetic flux density is higher than the operating point (Bop), the Low level signal is output. The High level signal is output when the magnetic flux density is lower than the release point (Brp).
The XC3202B series Hall IC provides a built‑in CMOS output driver and ultra‑low power consumption, making it suitable for battery‑powered portable devices such as mobile phones, electronic dictionaries, and handheld game consoles. Typical applications include cover detectors, home electronics, and portable game consoles.
Key specifications include a supply voltage range of 2.4‑5.5 V, average supply current of 8 µA, maximum output current of 40 mA, and operation over –40 °C to +85 °C. The device is available in SOT‑23D and QFN‑0601 packages and complies with RoHS requirements.
| Supply Voltage Range | 2.4~5.5 V |
|---|---|
| Average Supply Current | 8 µA |
| Maximum Output Current | 40 mA |
| Package Types | SOT‑23D, QFN‑0601 |
| Operating Temperature Range | -40 °C to +85 °C |
| South Pole Operating Magnetic Flux Density | 2 mT – 4 mT |
| Hysteresis Width | 0.5 mT – 1 mT |
It operates from 2.4 V to 5.5 V.
The average supply current is 8 µA.
The device is offered in SOT‑23D and QFN‑0601 packages.
The maximum output current is 40 mA.
