SCHG-C-718B F3SJ-A is an optical protection device that complies with the Japanese labor health law and EU machinery directive. It has certifications for type 4 ESPE and type 4 AOPD, suitable for safety systems of pressure or shear machines.

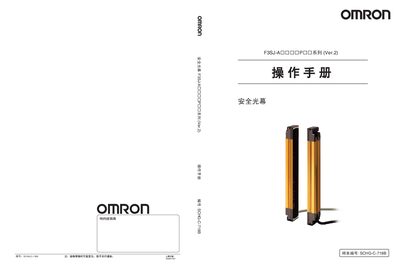

This manual explains how to install, configure and safely operate the Omron F3SJ-A safety light curtain. It includes safety symbols, installation guidelines, wiring instructions, and required testing procedures to ensure the device functions correctly in a machine safety system.
The document also lists applicable international, European, Japanese and North‑American standards, warranty terms, and technical limits such as supply voltage and output hold time. It is intended for qualified personnel responsible for machine safety. This manual is written in Chinese.
| Output Hold Time | ≥ 20 ms |
|---|
The output hold time must be at least 20 ms.
Installation and configuration must be performed by a qualified, authorized person who is responsible for machine safety.
