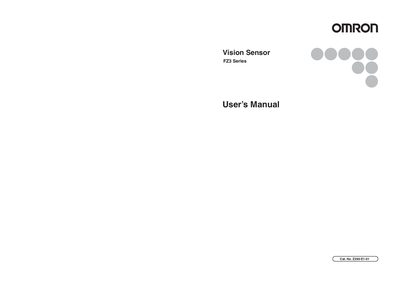

Omron FZ3 Series Vision Sensor User Manual

About this manual

This manual explains the functions, performance, and operating methods for the Omron FZ3 Series vision sensor. It covers safety precautions, basic operation, scene setup, and measurement procedures.

Key sections describe screen layouts, how to switch between ADJUST and RUN windows, saving and loading data, system environment settings, and communication interfaces (PLC Link, RS‑232C/422, Parallel, Ethernet, FTP). Additional reference tables and troubleshooting information are also included.

What's inside

• Before Operation
• Operation Flow
• Layouts of Screens/Windows
• Setting Scenes (Measurement Flow)
• Performing Test Measurement/Starting Operations
• Saving/Loading Data
• Changing the System Environment
• Methods for Connecting and Communicating with External Devices
• External Reference Tables
• Error Messages and Troubleshooting

Frequently asked questions

How do I switch to the RUN window?

Select the menu option “Switching to the RUN Window” to change from the ADJUST window to the RUN window.

How can I save settings data to the controller memory?

Use the “Saving Settings Data to Controller Memory” function described in the Saving/Loading Data section.
