G3VM-61VY is a SOP4 package MOS FET relay with high voltage resistance (AC3.75kV), low drive current (LED drive 2mA, receive side 70mA), support AC/DC input, and is RoHS compliant

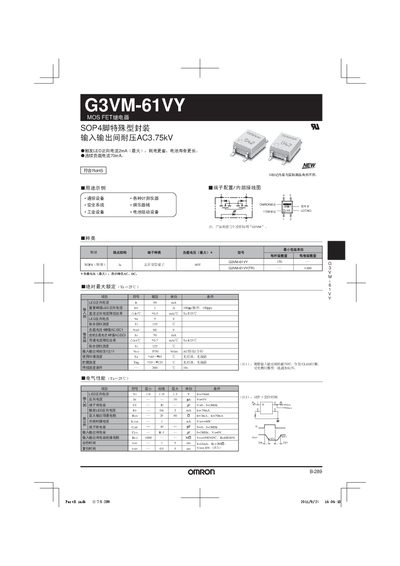

This manual describes the G3VM-61VY MOS FET relay, including its pin configuration, electrical performance, and application examples. It also lists safety notes and handling instructions for reliable operation.
The document provides detailed tables of electrical parameters such as isolation voltage, LED forward current, and load current limits, as well as recommended conditions for actuation and reset. Use the information to correctly integrate the relay into communication equipment, measurement instruments, safety systems, and battery‑driven devices. This manual is written in Chinese.
| Input‑output isolation voltage | AC 3.75 kV |
|---|---|
| LED forward current (trigger) | 2 mA (max) |
| Continuous load current | 70 mA |
| LED forward voltage | 0.513 V |
| Maximum output on‑resistance | 25 Ω |
| Operating temperature range | -20 °C to 85 °C |
The trigger LED forward current is limited to 2 mA maximum.
The relay offers an isolation voltage of AC 3.75 kV between input and output.
The continuous load current rating is 70 mA.
The relay should be operated between –20 °C and 85 °C.
