This document describes the features and characteristics of the OS P 60 G3VM-61H1 MOS FET relay, including load voltage, continuous load current, input-output withstand voltage, etc. This relay is suitable for switching small signal and analog signal applications.

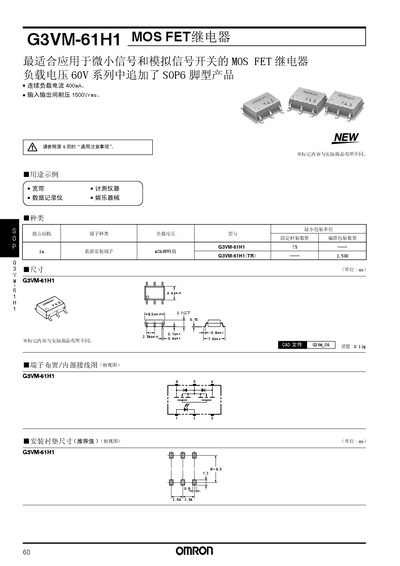

This manual describes the G3VM-61H1 MOS FET relay, a surface‑mount relay suited for switching very small analog and signal currents. It includes application examples such as broadband instruments, data recorders, and entertainment devices, and provides packaging and mounting information.
Key electrical characteristics are listed, including a continuous load current of 400 mA, input‑output isolation of 1500 Vrms, and typical on‑resistance of 0.5 Ω. Recommended operating conditions, absolute maximum ratings, and detailed terminal layout diagrams are also provided to ensure reliable installation and operation. This manual is written in Chinese.
| Continuous load current | 400 mA |
|---|---|
| Load voltage rating | 60 V |
| LED forward voltage (I=10 mA) | 1.0 V – 1.3 V |
| Maximum on‑resistance (Rds_on) | 0.5 Ω |
| On‑time (switching time) | 0.8 – 2.0 ms |
| Off‑time (release time) | 0.1 – 0.5 ms |
| Operating temperature range | -40 °C – +85 °C |
| Storage temperature range | -55 °C – +125 °C |
| Soldering temperature | 260 °C for 10 s |
The relay can carry a continuous load current of 400 mA.
The recommended operating temperature range is 20 °C to 65 °C.
