This datasheet provides the characteristics parameters of G3VM-61GR1, including: maximum working voltage, maximum current, maximum switching frequency, action time, reset time, withstand voltage, leakage current, etc.

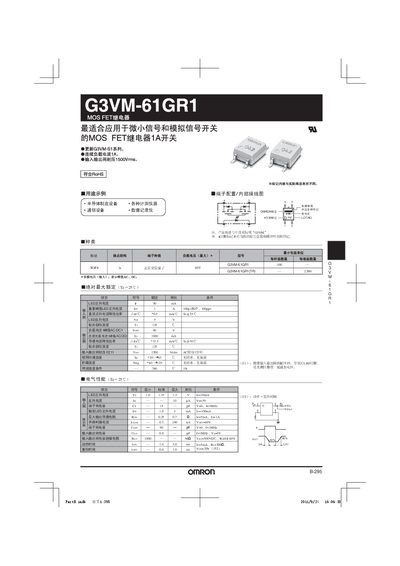

The G3VM-61GR1 is an Omron MOS FET relay designed for switching very small analog and signal currents. It is supplied in a surface‑mount SOP‑4 package and is RoHS compliant.
The manual lists electrical performance data, terminal pin configurations, recommended load voltage and current limits, LED drive requirements, and environmental temperature ranges, along with general safety precautions for proper operation and reset of the relay. This manual is written in Chinese.
| Maximum load voltage (peak AC/DC) | 48 V |
|---|---|
| Maximum continuous load current (peak AC/DC) | 1000 mA |
| Recommended operating temperature | 25 °C |
| LED forward current (drive) | 0‑20 mA |
| Storage temperature range | -40 °C to 125 °C |
The relay can handle a peak AC/DC load voltage of up to 48 V.
The recommended operating temperature is 25 °C.
The LED forward current should be set between 0 and 20 mA.
