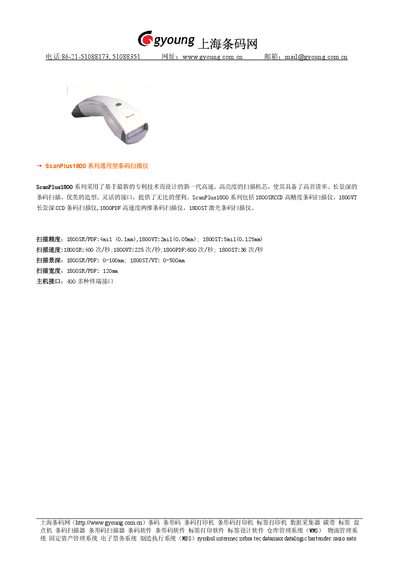

Shanghai BarCode Network is a company that specializes in providing barcode-related products and services. They offer a variety of products such as barcode printers, barcode scanners, and label printing software. Among them, the ScanPlus1800 series is a high-performance barcode scanner with high first-read rates and long depth of field. The series includes different types of scanners for different application scenarios.
The ScanPlus1800 series includes four models – 1800SR (high‑precision CCD), 1800YT (long‑depth CCD), 1800PDF (high‑speed 2‑D) and 1800ST (laser). Each model offers high read rates, long depth of field and a compact design with flexible interfaces.
Key performance figures are listed: scanning accuracy from 2 mil to 5 mil, speeds up to 600 scans per second, depth ranges up to 500 mm, and a scanning width of 120 mm. The series supports over 400 terminal interface options, making it suitable for a wide range of barcode applications. This manual is written in Chinese.
| Scanning accuracy | 4 mil (0.1 mm) for SR/PDF, 2 mil (0.05 mm) for YT, 5 mil (0.125 mm) for ST |
|---|---|
| Scanning speed | 1800SR: 400 scans/s, 1800YT: 225 scans/s, 1800PDF: 600 scans/s, 1800ST: 36 scans/s |
| Scanning depth | 0‑100 mm for SR/PDF, 0‑500 mm for ST |
| Scanning width | 120 mm for SR/PDF |
| Interface options | Over 400 terminal interface types |
The 1800SR and 1800PDF achieve 4 mil (0.1 mm) accuracy, the 1800YT reaches 2 mil (0.05 mm), and the 1800ST provides 5 mil (0.125 mm).
Scanning speeds are 400 scans/s for 1800SR, 225 scans/s for 1800YT, 600 scans/s for 1800PDF, and 36 scans/s for 1800ST.
The SR and PDF models cover a depth of 0‑100 mm, while the ST model can read up to 0‑500 mm.
